Semihermetic compressor H101CC

Advantages of the H101CC compressor:

  • Semi-hermetic construction
  • Very high quality and durability of the products
  • Utilization of the highest quality components
  • Suitable for operation with HFC and HFO refrigerants
  • Ability to operate in the range of 30-70 Hz
  • Option to equip with additional accessories
  • Technical parameters

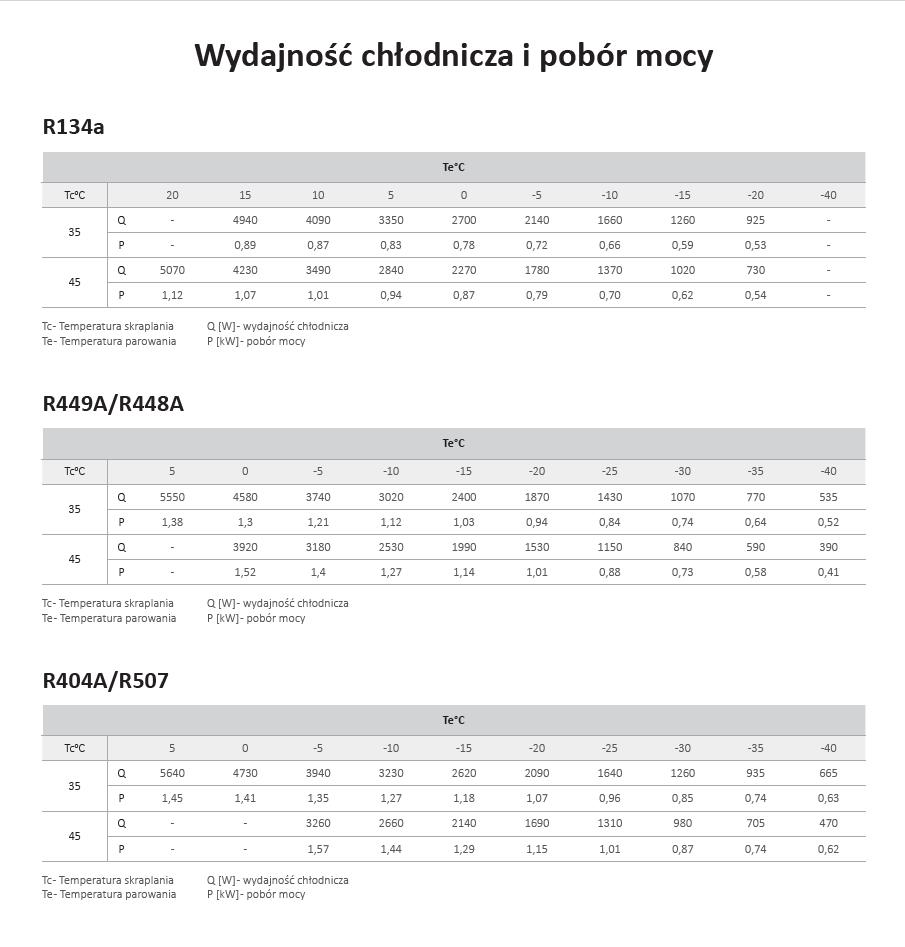

  • Refrigerating capacity and power input

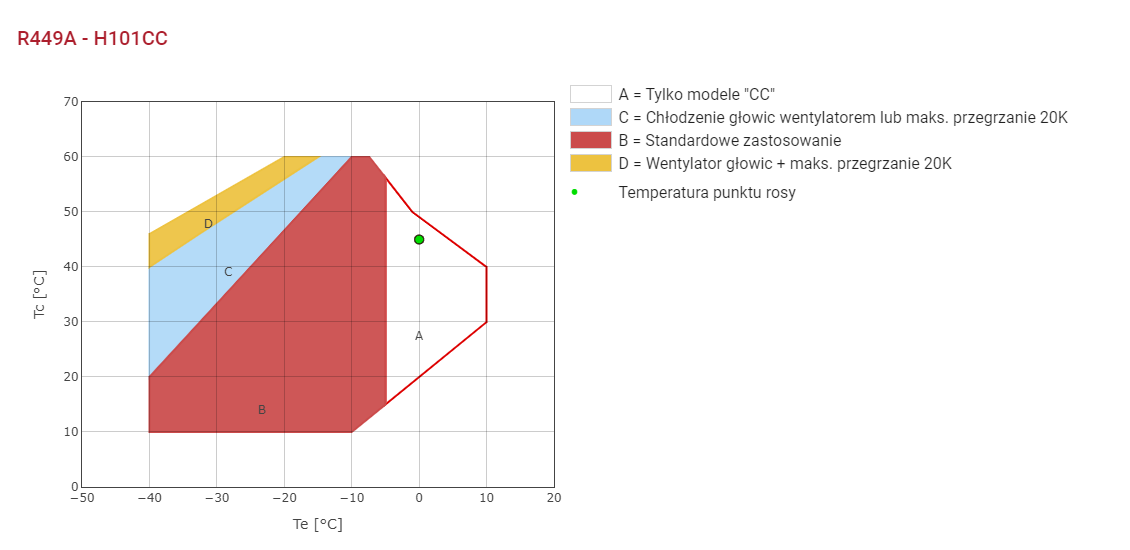

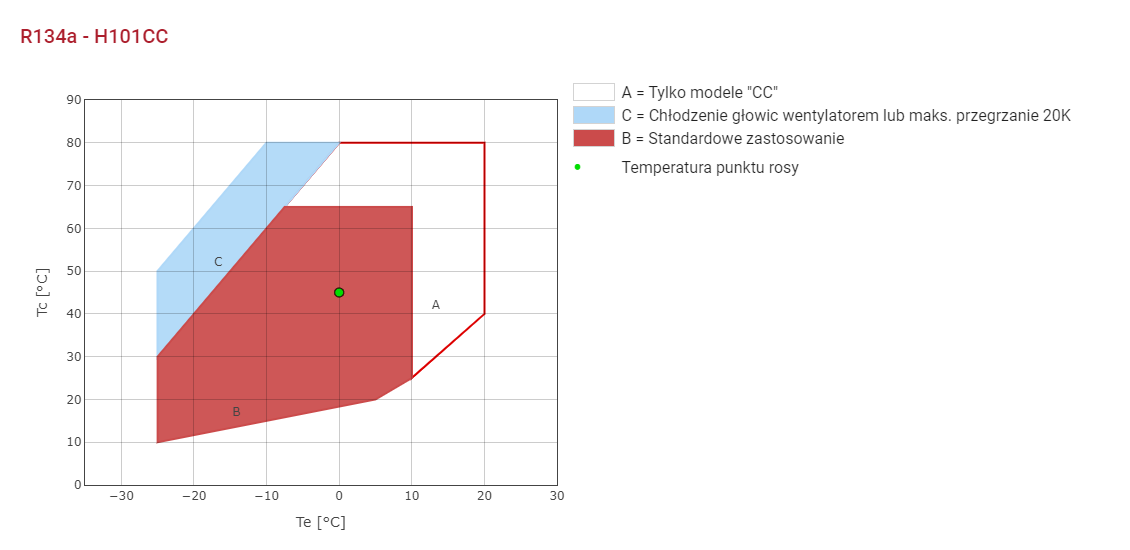

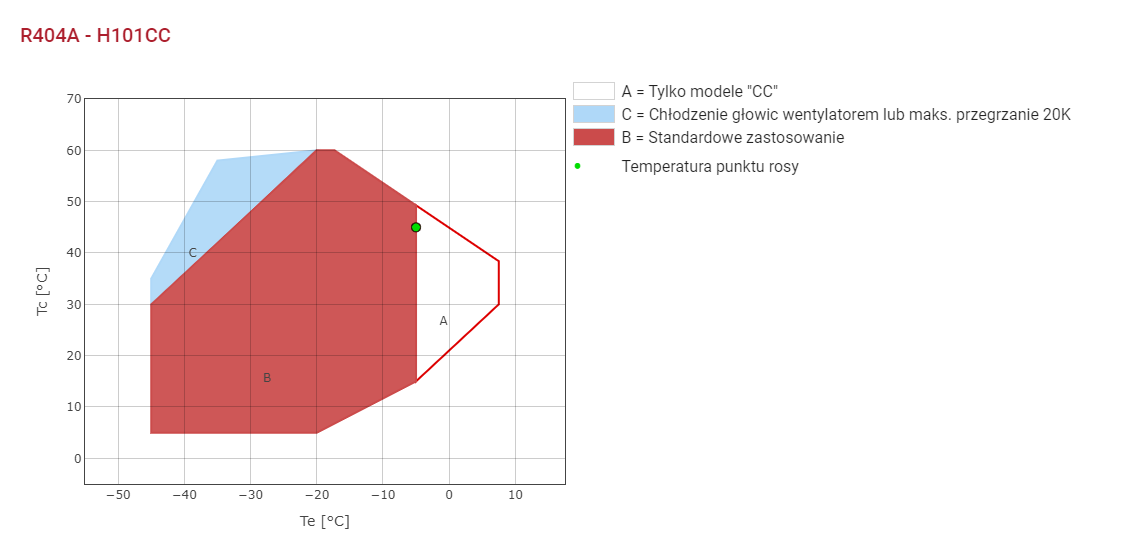

  • Application limits

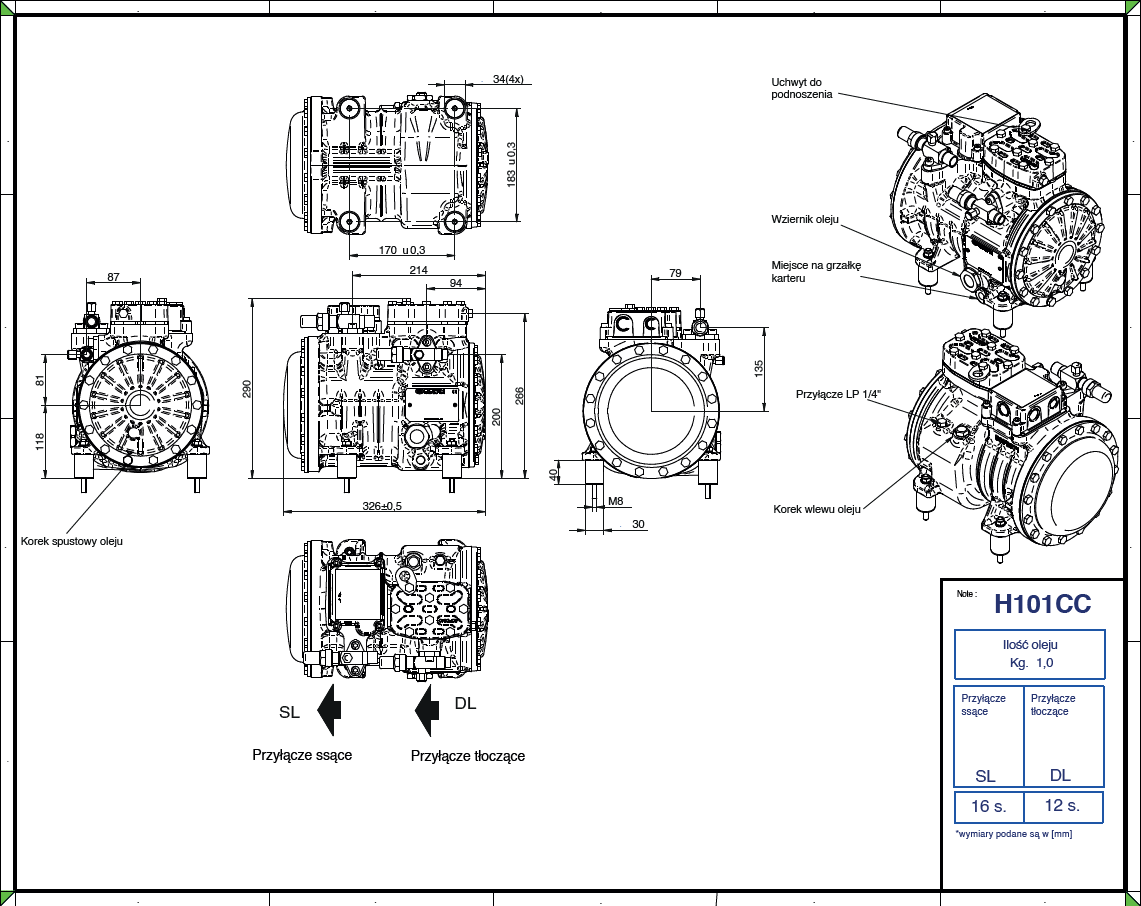

  • Technical drawing
  • Equipment
  • Download
  • Range: H11
  • Model: H101CC
  • Displacement at 50Hz: 5.37 m³/h
  • Cylinders: 2
  • Locked rotor current: 13.8 A
  • Max operating current: 2.9 A
  • Suction connection: 16 mm
  • Discharge connection: 11 mm
  • Oil: 1 L
  • Type of oil: POE 32
  • Net weight: 38 kg
  • Gross weight: 42 kg

Standard equipment:

Crankcase Heater (CH)

Discharge and suction valve

Electronic Protection Module (REL)

Factory filled with oil

Oil sight glass

Optional equipment:

Head fan (BF)

Inverter

Self-regulating crankcase heater (TCH)

Three phase to single phase kit

Water cooled head (WH)
