Semihermetic compressor H1201CC

Advantages of the H1201CC compressor:

  • Semi-hermetic construction
  • Very high quality and durability of the products
  • Utilization of the highest quality components
  • Suitable for operation with HFC and HFO refrigerants
  • Ability to operate in the range of 30-70 Hz
  • Option to equip with additional accessories
  • PWS engine
  • Technical parameters

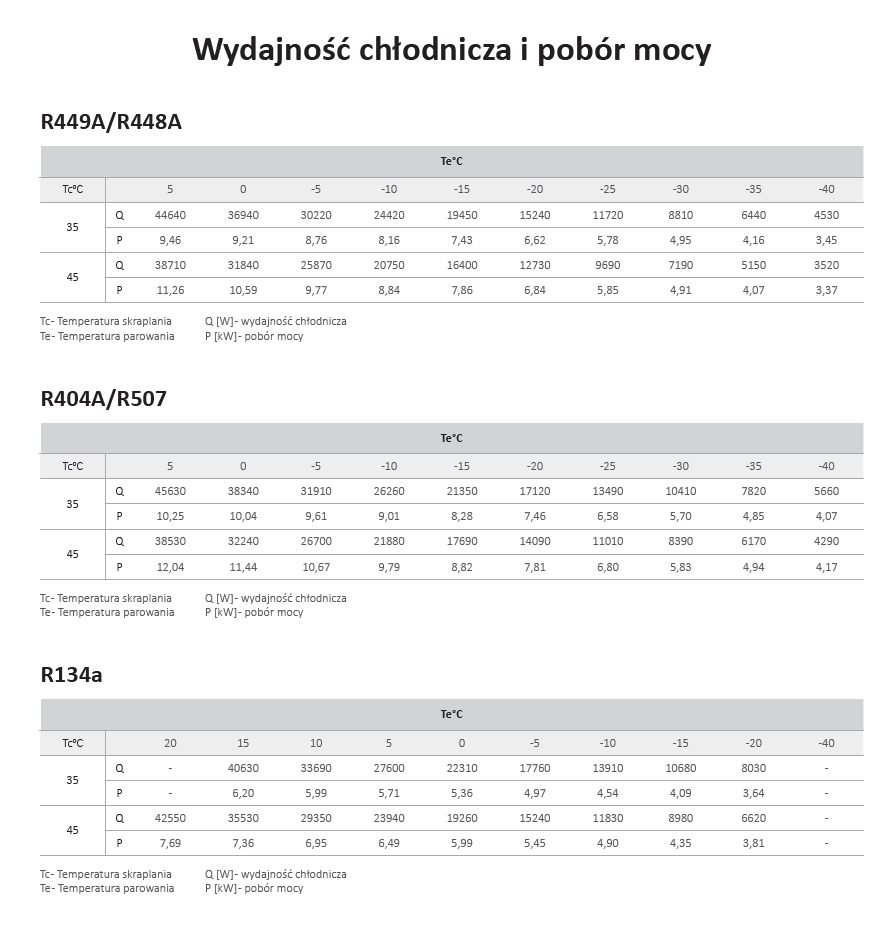

  • Refrigerating capacity and power input

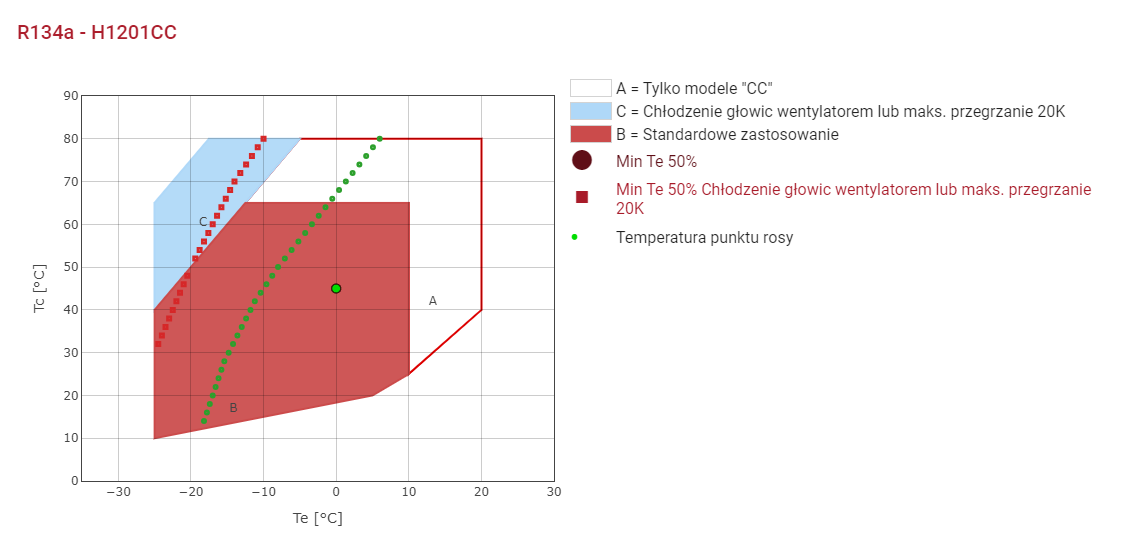

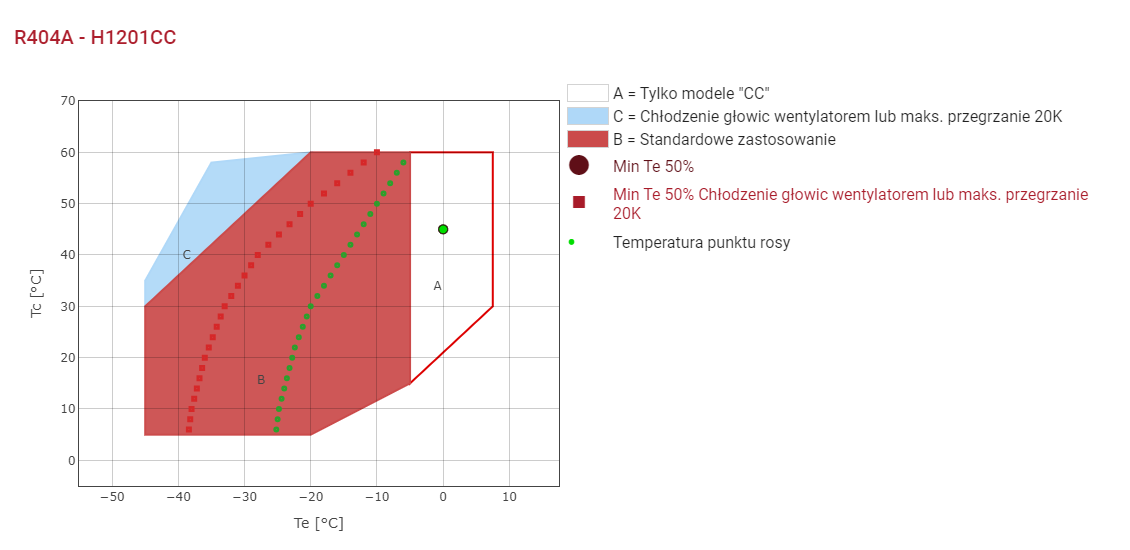

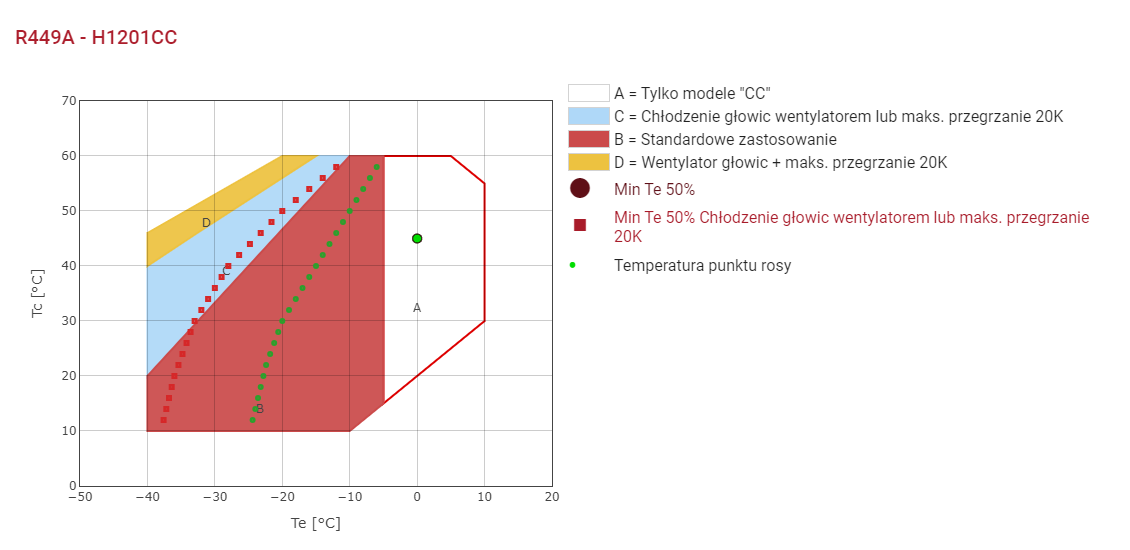

  • Application limits

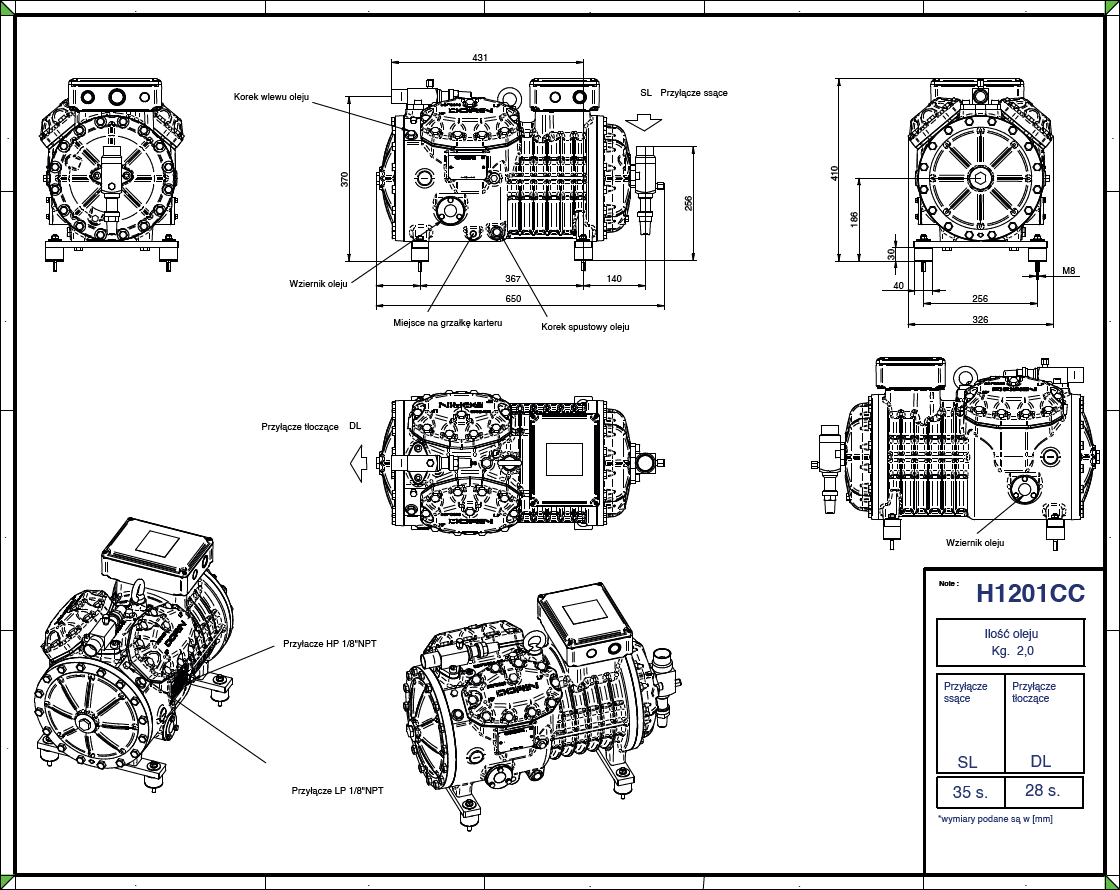

  • Technical drawing
  • Equipment
  • Download
  • Range: H41
  • Model: H1201CC
  • Displacement at 50Hz: 42.81 m³/h
  • Cylinders: 4
  • Power supply: 220-240 V / 3 / 50 Hz, 380-420 V / 3 / 50 Hz, 475-525 V / 3 / 50 Hz
  • Locked rotor current: 135 A
  • Max operating current: 28 A
  • Suction connection: 35 mm
  • Discharge connection: 28 mm
  • Oil: 2.5 L
  • Type of oil: POE 46
  • Net weight: 130 kg
  • Gross weight: 142 kg

Standard equipment:

Crankcase Heater (CH)

Discharge and suction valve

Electronic Protection Module (REL)

Factory filled with oil

Oil sight glass

Optional equipment:

Capacity control head (CR)

Head fan (BF)

Inverter

Optical oil level sensor (ALL)

Self-regulating crankcase heater (TCH)

Stepless capacity control (SLCR)

Unloaded start (US)

Water cooled head (WH)
