Condensing unit E-AU-H505CC

Advantages of the E-AU-H505CC condensing unit

  • The highest level of efficiency to meet Eco-Design criteria
  • Quiet operation
  • Devices in accordance with the PED 2014/68/EU directive, design pressure is 30 bar
  • 230V/1~/50-60 Hz fans equipped with internal thermal protection and a safety grid
  • Made in Italy
  • Possibility of retrofitting with necessary accessories
  • Technical parameters

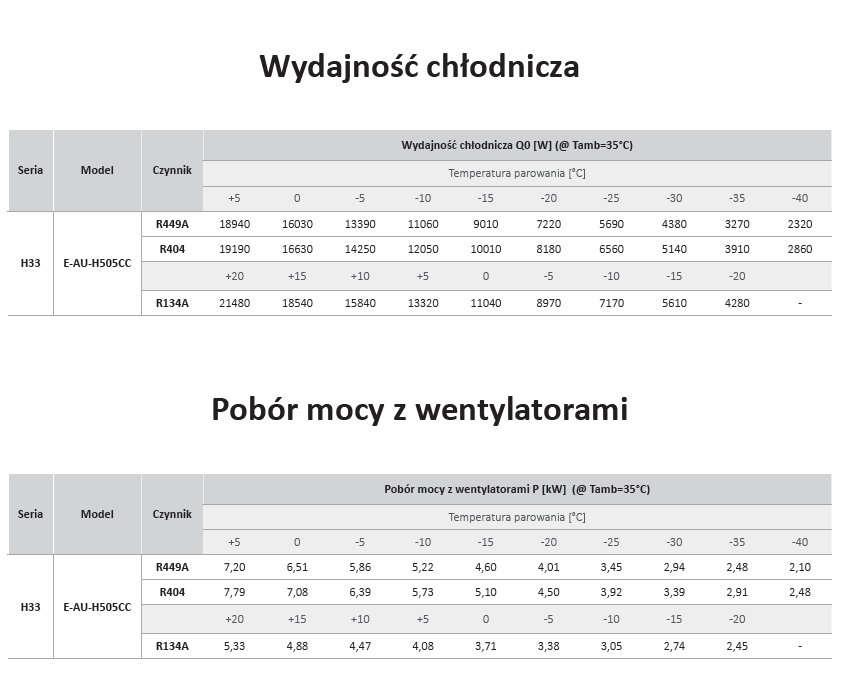

  • Refrigerating capacity and power input

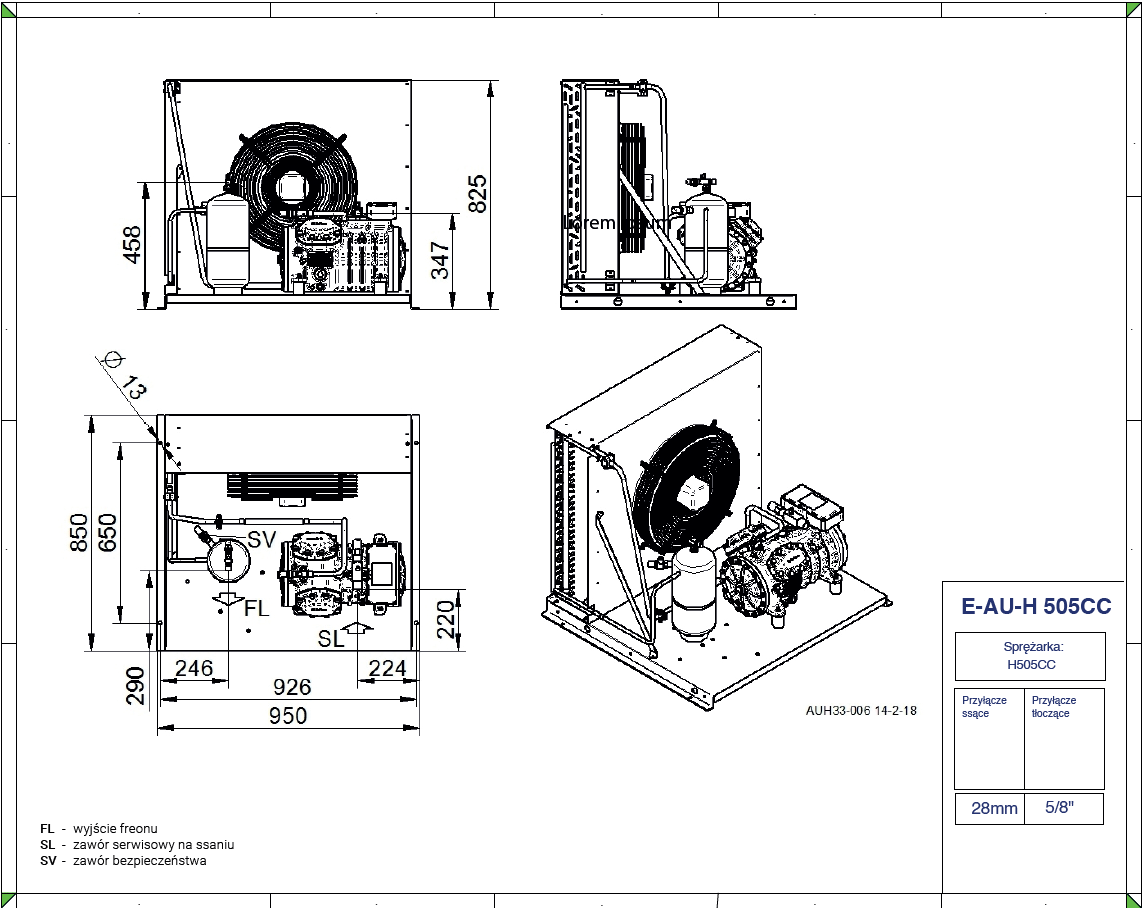

  • Technical drawing
  • Equipment
  • Download
  • Range:
  • Model: E-AU-H505CC
  • Displacement at 50Hz: 23.13 m³/h
  • Power supply: 220-240 V / 3 / 50 Hz, 380-420 V / 3 / 50 Hz
  • Type of oil: POE 32

Standard equipment:

appropriately equipped compressor (compressor equipment - see compressor)

complete condenser with fan motors

condenser appropriate to the size of the device

condenser with safety valve

condenser-tank

liquid tank with safety valve

standard pipelines on the compressor - condenser section

Steel frame

Optional equipment:

electrovalve

Filter driers

flexible suction hose

Housing units

HP/LP pressure switch

liquid sight glass with liquid indicator

Oil separator

pressure switch controlling the condenser fans
